The root API class for performing Boolean Operations on arbitrary shapes. More...

#include <BRepAlgoAPI_BooleanOperation.hxx>

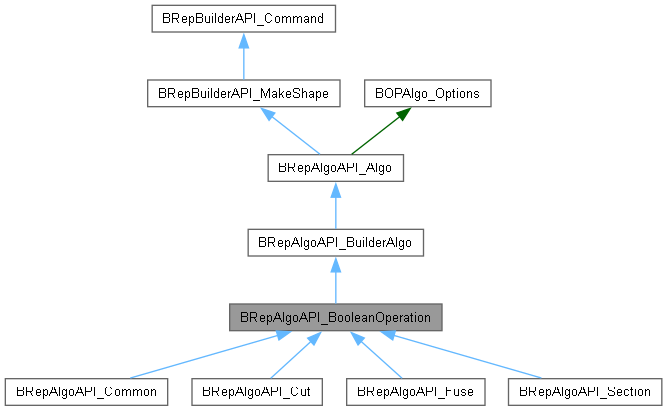

Inheritance diagram for BRepAlgoAPI_BooleanOperation:

[legend]

Public Member Functions
Setting/getting arguments
Returns the first argument involved in this Boolean operation. Obsolete
const TopoDS_Shape &	Shape1 () const
	Returns the second argument involved in this Boolean operation. Obsolete.
const TopoDS_Shape &	Shape2 () const
	Returns the second argument involved in this Boolean operation. Obsolete.
void	SetTools (const NCollection_List< TopoDS_Shape > &theLS)
	Sets the Tool arguments.
const NCollection_List< TopoDS_Shape > &	Tools () const
	Returns the Tools arguments.
Setting/Getting the type of Boolean operation
Sets the type of Boolean operation
void	SetOperation (const BOPAlgo_Operation theBOP)
	Returns the type of Boolean Operation.
BOPAlgo_Operation	Operation () const
	Returns the type of Boolean Operation.
Performing the operation
Performs the Boolean operation.
void	Build (const Message_ProgressRange &theRange=Message_ProgressRange()) override
	This is called by Shape(). It does nothing but may be redefined.
Public Member Functions inherited from BRepAlgoAPI_BuilderAlgo
	BRepAlgoAPI_BuilderAlgo ()
	Constructor with prepared Filler object.
	~BRepAlgoAPI_BuilderAlgo () override
	Constructor with prepared Filler object.
	BRepAlgoAPI_BuilderAlgo (const BOPAlgo_PaveFiller &thePF)
	Constructor with prepared Filler object.
	BRepAlgoAPI_BuilderAlgo (const BRepAlgoAPI_BuilderAlgo &)=delete
	Copy constructor is not allowed.
	BRepAlgoAPI_BuilderAlgo (BRepAlgoAPI_BuilderAlgo &&)=delete
	Move constructor is not allowed.
BRepAlgoAPI_BuilderAlgo &	operator= (const BRepAlgoAPI_BuilderAlgo &)=delete
	Copy assignment is not allowed.
BRepAlgoAPI_BuilderAlgo &	operator= (BRepAlgoAPI_BuilderAlgo &&)=delete
	Move assignment is not allowed.
void	SetArguments (const NCollection_List< TopoDS_Shape > &theLS)
	Gets the arguments.
const NCollection_List< TopoDS_Shape > &	Arguments () const
	Gets the arguments.
void	SetNonDestructive (const bool theFlag)
	Returns the flag that defines the mode of treatment. In non-destructive mode the argument shapes are not modified. Instead a copy of a sub-shape is created in the result if it is needed to be updated.
bool	NonDestructive () const
	Returns the flag that defines the mode of treatment. In non-destructive mode the argument shapes are not modified. Instead a copy of a sub-shape is created in the result if it is needed to be updated.
void	SetGlue (const BOPAlgo_GlueEnum theGlue)
	Sets the glue option for the algorithm, which allows increasing performance of the intersection of the input shapes.
BOPAlgo_GlueEnum	Glue () const
	Returns the glue option of the algorithm.
void	SetCheckInverted (const bool theCheck)
	Enables/Disables the check of the input solids for inverted status.
bool	CheckInverted () const
	Returns the flag defining whether the check for input solids on inverted status should be performed or not.
void	Build (const Message_ProgressRange &theRange=Message_ProgressRange()) override
	This is called by Shape(). It does nothing but may be redefined.
void	SimplifyResult (const bool theUnifyEdges=true, const bool theUnifyFaces=true, const double theAngularTol=Precision::Angular())
const NCollection_List< TopoDS_Shape > &	Modified (const TopoDS_Shape &theS) override
	Returns the list of shapes generated from the shape <theS>. In frames of Boolean Operations algorithms only Edges and Faces could have Generated elements, as only they produce new elements during intersection:
const NCollection_List< TopoDS_Shape > &	Generated (const TopoDS_Shape &theS) override
	Returns the list of shapes generated from the shape <theS>. In frames of Boolean Operations algorithms only Edges and Faces could have Generated elements, as only they produce new elements during intersection:
bool	IsDeleted (const TopoDS_Shape &aS) override
	Checks if the shape <theS> has been completely removed from the result, i.e. the result does not contain the shape itself and any of its splits. Returns TRUE if the shape has been deleted.
virtual bool	HasModified () const
	Returns true if any of the input shapes has been modified during operation.
virtual bool	HasGenerated () const
	Returns true if any of the input shapes has generated shapes during operation.
virtual bool	HasDeleted () const
	Returns true if any of the input shapes has been deleted during operation. Normally, General Fuse operation should not have Deleted elements, but all derived operation can have.
void	SetToFillHistory (const bool theHistFlag)
	Returns flag of history availability.
bool	HasHistory () const
	Returns flag of history availability.
const NCollection_List< TopoDS_Shape > &	SectionEdges ()
const BOPAlgo_PPaveFiller &	DSFiller () const
	Returns the Building tool.
const BOPAlgo_PBuilder &	Builder () const
	Returns the Building tool.
occ::handle< BRepTools_History >	History () const
	History tool.
Public Member Functions inherited from BRepAlgoAPI_Algo
const TopoDS_Shape &	Shape () override
	Returns a shape built by the shape construction algorithm. Does not check if the shape is built.
void	ClearWarnings ()
	Clears the warnings of the algorithm.
void	DumpErrors (Standard_OStream &theOS) const
	Dumps the error status into the given stream.
void	DumpWarnings (Standard_OStream &theOS) const
	Dumps the warning statuses into the given stream.
double	FuzzyValue () const
	Returns the additional tolerance.
const occ::handle< Message_Report > &	GetReport () const
	Returns report collecting all errors and warnings.
bool	HasError (const occ::handle< Standard_Type > &theType) const
	Returns true if algorithm has generated error of specified type.
bool	HasErrors () const
	Returns true if algorithm has failed.
bool	HasWarning (const occ::handle< Standard_Type > &theType) const
	Returns true if algorithm has generated warning of specified type.
bool	HasWarnings () const
	Returns true if algorithm has generated some warning alerts.
bool	RunParallel () const
	Returns the flag of parallel processing.
void	SetFuzzyValue (const double theFuzz)
	Sets the additional tolerance.
void	SetRunParallel (const bool theFlag)
	Set the flag of parallel processing if <theFlag> is true the parallel processing is switched on if <theFlag> is false the parallel processing is switched off.
void	SetUseOBB (const bool theUseOBB)
	Enables/Disables the usage of OBB.
Public Member Functions inherited from BRepBuilderAPI_MakeShape
	operator TopoDS_Shape ()
Public Member Functions inherited from BRepBuilderAPI_Command
virtual	~BRepBuilderAPI_Command ()
virtual bool	IsDone () const
void	Check () const
	Raises NotDone if done is false.

Protected Attributes
Fields
NCollection_List< TopoDS_Shape >	myTools
	Tool arguments of operation.
BOPAlgo_Operation	myOperation
	Type of Boolean Operation.
Protected Attributes inherited from BRepAlgoAPI_BuilderAlgo
NCollection_List< TopoDS_Shape >	myArguments
	Arguments of the operation.
bool	myNonDestructive
	Non-destructive mode management.
BOPAlgo_GlueEnum	myGlue
	Gluing mode management.
bool	myCheckInverted
	Check for inverted solids management.
bool	myFillHistory
	Controls the history collection.
bool	myIsIntersectionNeeded
	Flag to control whether the intersection of arguments should be performed or not.
BOPAlgo_PPaveFiller	myDSFiller
	Intersection tool performs intersection of the argument shapes.
BOPAlgo_PBuilder	myBuilder
	Building tool performs construction of the result basing on the results of intersection.
occ::handle< BRepTools_History >	myHistory
	General History tool, containing all History of shapes modifications during the operation (including result simplification).
occ::handle< BRepTools_History >	mySimplifierHistory
	History of result shape simplification.
Protected Attributes inherited from BRepBuilderAPI_MakeShape
TopoDS_Shape	myShape
NCollection_List< TopoDS_Shape >	myGenerated
occ::handle< NCollection_BaseAllocator >	myAllocator
	Enables/Disables the usage of OBB.
occ::handle< Message_Report >	myReport
	Enables/Disables the usage of OBB.
bool	myRunParallel
	Enables/Disables the usage of OBB.
double	myFuzzyValue
	Enables/Disables the usage of OBB.
bool	myUseOBB
	Enables/Disables the usage of OBB.

Constructors
Constructor to perform Boolean operation on only two arguments. Obsolete
	BRepAlgoAPI_BooleanOperation ()
	Constructor with precomputed intersections of arguments.
	BRepAlgoAPI_BooleanOperation (const BOPAlgo_PaveFiller &thePF)
	Constructor with precomputed intersections of arguments.
	BRepAlgoAPI_BooleanOperation (const TopoDS_Shape &theS1, const TopoDS_Shape &theS2, const BOPAlgo_Operation theOperation)
	Constructor with precomputed intersections of arguments.
	BRepAlgoAPI_BooleanOperation (const TopoDS_Shape &theS1, const TopoDS_Shape &theS2, const BOPAlgo_PaveFiller &thePF, const BOPAlgo_Operation theOperation)
	Constructor to perform Boolean operation on only two arguments with precomputed intersection results. Obsolete.

Additional Inherited Members
Protected Member Functions inherited from BRepAlgoAPI_BuilderAlgo
virtual void	SetAttributes ()
void	IntersectShapes (const NCollection_List< TopoDS_Shape > &theArgs, const Message_ProgressRange &theRange)
	Builds the resulting shape.
void	BuildResult (const Message_ProgressRange &theRange=Message_ProgressRange())
	Builds the resulting shape.
void	Clear () override
	Clears all warnings and errors, and any data cached by the algorithm. User defined options are not cleared.
Protected Member Functions inherited from BRepAlgoAPI_Algo
	BRepAlgoAPI_Algo ()
	Empty constructor.
	~BRepAlgoAPI_Algo () override
	Destructor.
	BRepAlgoAPI_Algo (const occ::handle< NCollection_BaseAllocator > &theAllocator)
	Empty constructor.
Protected Member Functions inherited from BRepBuilderAPI_MakeShape
	BRepBuilderAPI_MakeShape ()
Protected Member Functions inherited from BRepBuilderAPI_Command
	BRepBuilderAPI_Command ()
	Set done to False.
void	Done ()
	Set done to true.
void	NotDone ()
	Set done to false.
bool	UserBreak (const Message_ProgressScope &thePS)
	Adds error to the report if the break signal was caught. Returns true in this case, false otherwise.
	BOPAlgo_Options ()
	Empty constructor.
	BOPAlgo_Options (const occ::handle< NCollection_BaseAllocator > &theAllocator)
	Constructor with allocator.
virtual	~BOPAlgo_Options ()
	Destructor.
const occ::handle< NCollection_BaseAllocator > &	Allocator () const
	Returns allocator.
void	AddError (const occ::handle< Message_Alert > &theAlert)
	Adds the alert as error (fail).
void	AddWarning (const occ::handle< Message_Alert > &theAlert)
	Adds the alert as warning.
bool	HasErrors () const
	Returns true if algorithm has failed.
bool	HasError (const occ::handle< Standard_Type > &theType) const
	Returns true if algorithm has generated error of specified type.
bool	HasWarnings () const
	Returns true if algorithm has generated some warning alerts.
bool	HasWarning (const occ::handle< Standard_Type > &theType) const
	Returns true if algorithm has generated warning of specified type.
const occ::handle< Message_Report > &	GetReport () const
	Returns report collecting all errors and warnings.
void	DumpErrors (Standard_OStream &theOS) const
	Dumps the error status into the given stream.
void	DumpWarnings (Standard_OStream &theOS) const
	Dumps the warning statuses into the given stream.
void	ClearWarnings ()
	Clears the warnings of the algorithm.
void	SetFuzzyValue (const double theFuzz)
	Sets the additional tolerance.
double	FuzzyValue () const
	Returns the additional tolerance.
void	SetUseOBB (const bool theUseOBB)
	Enables/Disables the usage of OBB.
bool	UseOBB () const
	Returns the flag defining usage of OBB.
void	SetRunParallel (const bool theFlag)
	Set the flag of parallel processing if <theFlag> is true the parallel processing is switched on if <theFlag> is false the parallel processing is switched off.
bool	RunParallel () const
	Returns the flag of parallel processing.
static bool	GetParallelMode ()
	Gets the global parallel mode.
static void	SetParallelMode (const bool theNewMode)
	Sets the global parallel mode.

Detailed Description

The root API class for performing Boolean Operations on arbitrary shapes.

The arguments of the operation are divided in two groups - Objects and Tools. Each group can contain any number of shapes, but each shape should be valid in terms of BRepCheck_Analyzer and BOPAlgo_ArgumentAnalyzer. The algorithm builds the splits of the given arguments using the intersection results and combines the result of Boolean Operation of given type:

FUSE - union of two groups of objects;
COMMON - intersection of two groups of objects;
CUT - subtraction of one group from the other;
SECTION - section edges and vertices of all arguments;

The rules for the arguments and type of the operation are the following:

For Boolean operation FUSE all arguments should have equal dimensions;
For Boolean operation CUT the minimal dimension of Tools should not be less than the maximal dimension of Objects;
For Boolean operation COMMON the arguments can have any dimension.
For Boolean operation SECTION the arguments can be of any type.

Additionally to the errors of the base class the algorithm returns the following Errors:

BOPAlgo_AlertBOPNotSet - in case the type of Boolean Operation is not set.

Constructor & Destructor Documentation

◆ BRepAlgoAPI_BooleanOperation() [1/4]

BRepAlgoAPI_BooleanOperation::BRepAlgoAPI_BooleanOperation ( )

Constructor with precomputed intersections of arguments.

◆ BRepAlgoAPI_BooleanOperation() [2/4]

BRepAlgoAPI_BooleanOperation::BRepAlgoAPI_BooleanOperation ( const BOPAlgo_PaveFiller & thePF )

Constructor with precomputed intersections of arguments.

◆ BRepAlgoAPI_BooleanOperation() [3/4]

BRepAlgoAPI_BooleanOperation::BRepAlgoAPI_BooleanOperation	(	const TopoDS_Shape &	theS1,
		const TopoDS_Shape &	theS2,
		const BOPAlgo_Operation	theOperation )

protected

Constructor with precomputed intersections of arguments.

◆ BRepAlgoAPI_BooleanOperation() [4/4]

BRepAlgoAPI_BooleanOperation::BRepAlgoAPI_BooleanOperation	(	const TopoDS_Shape &	theS1,
		const TopoDS_Shape &	theS2,
		const BOPAlgo_PaveFiller &	thePF,
		const BOPAlgo_Operation	theOperation )

protected

Constructor to perform Boolean operation on only two arguments with precomputed intersection results. Obsolete.

Member Function Documentation

◆ Build()

void BRepAlgoAPI_BooleanOperation::Build ( const Message_ProgressRange & theRange = Message_ProgressRange() )

overridevirtual

This is called by Shape(). It does nothing but may be redefined.

Reimplemented from BRepBuilderAPI_MakeShape.

Reimplemented in BRepAlgoAPI_Section.

◆ Operation()

BOPAlgo_Operation BRepAlgoAPI_BooleanOperation::Operation ( ) const

inline

Returns the type of Boolean Operation.

◆ SetOperation()

void BRepAlgoAPI_BooleanOperation::SetOperation ( const BOPAlgo_Operation theBOP )

inline

Returns the type of Boolean Operation.

◆ SetTools()

void BRepAlgoAPI_BooleanOperation::SetTools ( const NCollection_List< TopoDS_Shape > & theLS )

inline

Sets the Tool arguments.

◆ Shape1()

const TopoDS_Shape & BRepAlgoAPI_BooleanOperation::Shape1 ( ) const

inline

Returns the second argument involved in this Boolean operation. Obsolete.

◆ Shape2()

const TopoDS_Shape & BRepAlgoAPI_BooleanOperation::Shape2 ( ) const

inline

Returns the second argument involved in this Boolean operation. Obsolete.

◆ Tools()

const NCollection_List< TopoDS_Shape > & BRepAlgoAPI_BooleanOperation::Tools ( ) const

inline

Returns the Tools arguments.

Field Documentation

◆ myOperation

BOPAlgo_Operation BRepAlgoAPI_BooleanOperation::myOperation

protected

Type of Boolean Operation.

◆ myTools

NCollection_List<TopoDS_Shape> BRepAlgoAPI_BooleanOperation::myTools

protected

Tool arguments of operation.

The documentation for this class was generated from the following file:

BRepAlgoAPI_BooleanOperation.hxx

Public Member Functions

Protected Attributes

Constructors

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ BRepAlgoAPI_BooleanOperation() [1/4]

◆ BRepAlgoAPI_BooleanOperation() [2/4]

◆ BRepAlgoAPI_BooleanOperation() [3/4]

◆ BRepAlgoAPI_BooleanOperation() [4/4]

Member Function Documentation

◆ Build()

◆ Operation()

◆ SetOperation()

◆ SetTools()

◆ Shape1()

◆ Shape2()

◆ Tools()

Field Documentation

◆ myOperation

◆ myTools
