BRepBuilderAPI_MakeShape Class Reference

This is the root class for all shape constructions. It stores the result. More...

#include <BRepBuilderAPI_MakeShape.hxx>

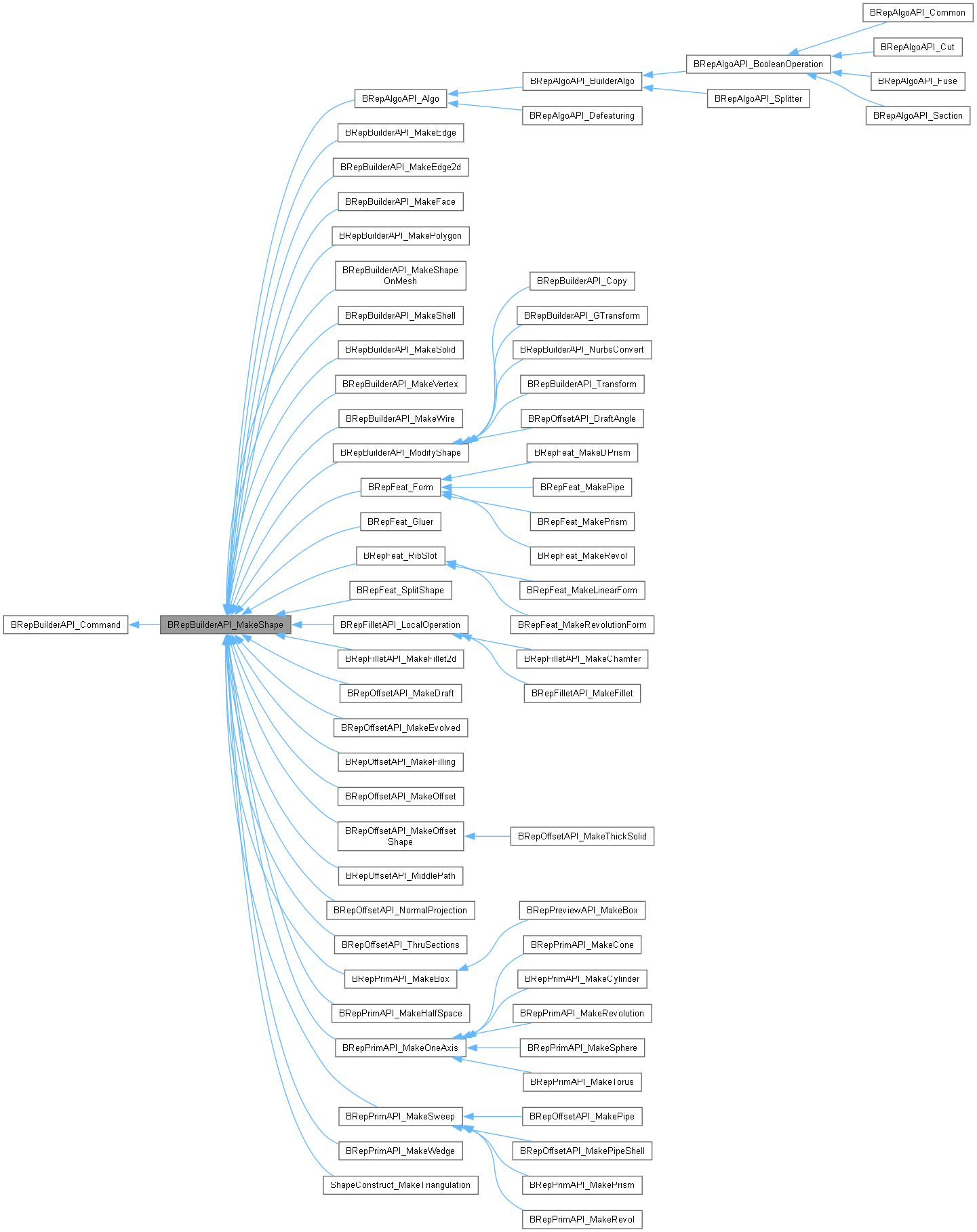

Inheritance diagram for BRepBuilderAPI_MakeShape:

Public Member Functions
virtual void	Build (const Message_ProgressRange &theRange=Message_ProgressRange())
	This is called by Shape(). It does nothing but may be redefined.
virtual const TopoDS_Shape &	Shape ()
	Returns a shape built by the shape construction algorithm. Raises exception StdFail_NotDone if the shape was not built.
	operator TopoDS_Shape ()
virtual const NCollection_List< TopoDS_Shape > &	Generated (const TopoDS_Shape &S)
	Returns the list of shapes generated from the shape .
virtual const NCollection_List< TopoDS_Shape > &	Modified (const TopoDS_Shape &S)
	Returns the list of shapes modified from the shape .
virtual bool	IsDeleted (const TopoDS_Shape &S)
	Returns true if the shape S has been deleted.
Public Member Functions inherited from BRepBuilderAPI_Command
virtual	~BRepBuilderAPI_Command ()
virtual bool	IsDone () const
void	Check () const
	Raises NotDone if done is false.

Protected Member Functions
	BRepBuilderAPI_MakeShape ()
Protected Member Functions inherited from BRepBuilderAPI_Command
	BRepBuilderAPI_Command ()
	Set done to False.
void	Done ()
	Set done to true.
void	NotDone ()
	Set done to false.

Protected Attributes
TopoDS_Shape	myShape
NCollection_List< TopoDS_Shape >	myGenerated

Detailed Description

This is the root class for all shape constructions. It stores the result.

It provides deferred methods to trace the history of sub-shapes.

Constructor & Destructor Documentation

BRepBuilderAPI_MakeShape()

BRepBuilderAPI_MakeShape::BRepBuilderAPI_MakeShape ( )

protected

Member Function Documentation

Build()

virtual void BRepBuilderAPI_MakeShape::Build ( const Message_ProgressRange & theRange = Message_ProgressRange() )

virtual

This is called by Shape(). It does nothing but may be redefined.

Reimplemented in BRepAlgoAPI_BooleanOperation, BRepAlgoAPI_BuilderAlgo, BRepAlgoAPI_Defeaturing, BRepAlgoAPI_Section, BRepAlgoAPI_Splitter, BRepBuilderAPI_MakeShapeOnMesh, BRepFeat_Gluer, BRepFeat_SplitShape, BRepFilletAPI_MakeChamfer, BRepFilletAPI_MakeFillet2d, BRepFilletAPI_MakeFillet, BRepOffsetAPI_DraftAngle, BRepOffsetAPI_MakeEvolved, BRepOffsetAPI_MakeFilling, BRepOffsetAPI_MakeOffset, BRepOffsetAPI_MakeOffsetShape, BRepOffsetAPI_MakePipe, BRepOffsetAPI_MakePipeShell, BRepOffsetAPI_MakeThickSolid, BRepOffsetAPI_MiddlePath, BRepOffsetAPI_NormalProjection, BRepOffsetAPI_ThruSections, BRepPreviewAPI_MakeBox, BRepPrimAPI_MakeBox, BRepPrimAPI_MakeOneAxis, BRepPrimAPI_MakePrism, BRepPrimAPI_MakeRevol, BRepPrimAPI_MakeWedge, and ShapeConstruct_MakeTriangulation.

Generated()

virtual const NCollection_List< TopoDS_Shape > & BRepBuilderAPI_MakeShape::Generated ( const TopoDS_Shape & S )

virtual

Returns the list of shapes generated from the shape .

Reimplemented in BRepAlgoAPI_BuilderAlgo, BRepAlgoAPI_Defeaturing, BRepFeat_Form, BRepFeat_RibSlot, BRepFilletAPI_MakeChamfer, BRepFilletAPI_MakeFillet, BRepOffsetAPI_DraftAngle, BRepOffsetAPI_MakeDraft, BRepOffsetAPI_MakeFilling, BRepOffsetAPI_MakeOffset, BRepOffsetAPI_MakeOffsetShape, BRepOffsetAPI_MakePipe, BRepOffsetAPI_MakePipeShell, BRepOffsetAPI_NormalProjection, BRepOffsetAPI_ThruSections, BRepPrimAPI_MakePrism, and BRepPrimAPI_MakeRevol.

IsDeleted()

virtual bool BRepBuilderAPI_MakeShape::IsDeleted ( const TopoDS_Shape & S )

virtual

Returns true if the shape S has been deleted.

Reimplemented in BRepAlgoAPI_BuilderAlgo, BRepAlgoAPI_Defeaturing, BRepBuilderAPI_MakeSolid, BRepFeat_Form, BRepFeat_Gluer, BRepFeat_RibSlot, BRepFeat_SplitShape, BRepFilletAPI_MakeChamfer, BRepFilletAPI_MakeFillet, BRepOffsetAPI_MakeOffsetShape, BRepPrimAPI_MakePrism, and BRepPrimAPI_MakeRevol.

Modified()

virtual const NCollection_List< TopoDS_Shape > & BRepBuilderAPI_MakeShape::Modified ( const TopoDS_Shape & S )

virtual

Returns the list of shapes modified from the shape .

Reimplemented in BRepAlgoAPI_BuilderAlgo, BRepAlgoAPI_Defeaturing, BRepBuilderAPI_GTransform, BRepBuilderAPI_ModifyShape, BRepBuilderAPI_NurbsConvert, BRepBuilderAPI_Transform, BRepFeat_Form, BRepFeat_Gluer, BRepFeat_RibSlot, BRepFeat_SplitShape, BRepFilletAPI_MakeChamfer, BRepFilletAPI_MakeFillet2d, BRepFilletAPI_MakeFillet, BRepOffsetAPI_DraftAngle, BRepOffsetAPI_MakeOffsetShape, and BRepOffsetAPI_MakeThickSolid.

operator TopoDS_Shape()

BRepBuilderAPI_MakeShape::operator TopoDS_Shape

(

)

Shape()

virtual const TopoDS_Shape & BRepBuilderAPI_MakeShape::Shape ( )

virtual

Returns a shape built by the shape construction algorithm. Raises exception StdFail_NotDone if the shape was not built.

Reimplemented in BRepAlgoAPI_Algo.

Field Documentation

myGenerated

NCollection_List<TopoDS_Shape> BRepBuilderAPI_MakeShape::myGenerated

protected

myShape

TopoDS_Shape BRepBuilderAPI_MakeShape::myShape

protected

---

The documentation for this class was generated from the following file:

• BRepBuilderAPI_MakeShape.hxx
